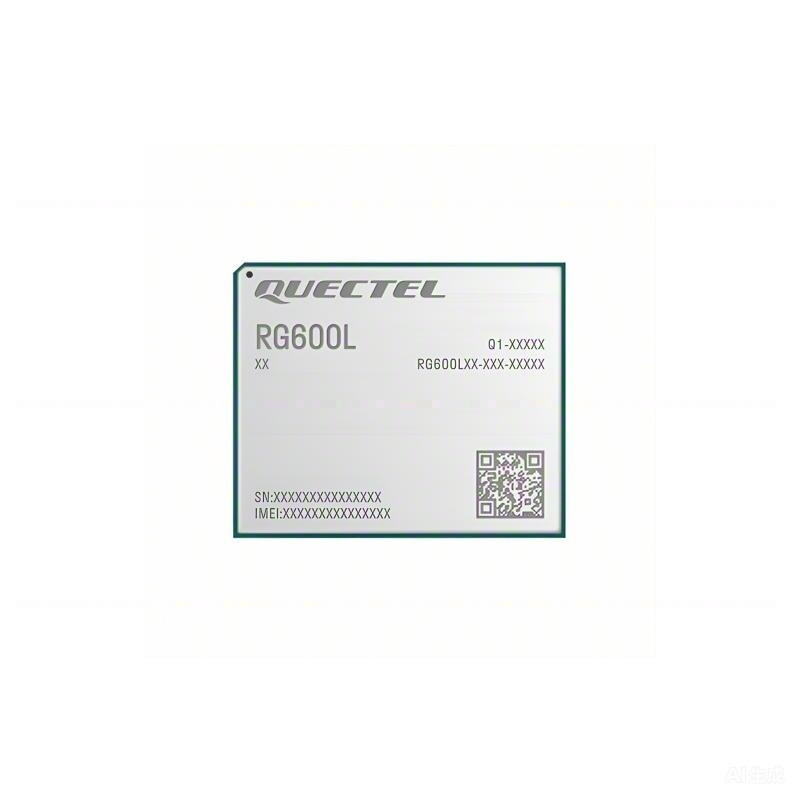

RG600L series is a 5G Sub-6 GHz LGA module optimized specially for IoT and eMBB applications. By adopting the 3GPP Rel-15 technology, the module supports both 5G NSA and SA modes. RG600L series is an industrial-grade module for industrial and commercial applications only.
RG600L series has built-in rich network protocols, integration of multiple industrial standard interfaces, and supports multiple driver and software functions, and is integrated with network hardware accelerator and VPN hardware accelerator, which extend the applicability of the modules to a wide range of IoT and eMBB applications such as 5G wireless routers, CPE, MiFi, business routers, home gateways, etc.
5G Sub-6 GHz LGA module with 4G (LTE Cat 19), optimized for IoT and eMBB applications
Worldwide 5G, LTE-A and WCDMA coverage
Supports 5G NSA and SA modes
Supports 5G 2CC Carrier Aggregation
Spectrum multiplexing and significantly increased network capacity enabled with TM9
5G Sub-6 GHz module
LGA form factor
44 mm × 53 mm × 2.95 mm
Max. data rate SA Sub-6 GHz 4.67 Gbps (DL) / 1.25 Gbps (UL)
Max. data rate NSA Sub-6 GHz 4.67 Gbps (DL) / 836 Mbps (UL)
Extended temperature range of -40°C to +85°C
