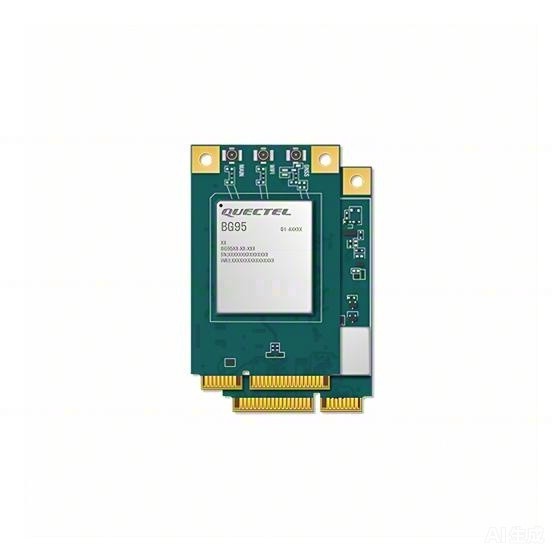

The BG95-M3 Mini PCIe is a multi-band LTE Cat M1/Cat NB2/EGPRS module which achieves maximum downlink rates of 588Kbps and uplink rates of 1119Kbps. It has a highly integrated and cost-effective standard PCI Express® Mini Card form factor measuring 51.0mm × 30.0mm × 4.9mm which allows integrators and developers to benefit from its mechanical intensity and low power consumption and design their applications with ease.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux etc.) allow the module to serve a wide range of IoT applications such as wireless POS, smart metering, asset tracking and more.
Global coverage with LTE Cat M1/Cat NB2/EGPRS
Easy migration from Quectel LTE Mini PCIe modules
ARM A7 Processor
Multi-constellation GNSS receiver
USB 2.0 interface
Supports DFOTA
Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design and development efforts
Robust mounting and interfaces
Multi-band LPWA module
51.0mm × 30.0mm × 4.9mm
Mini PCIe package
Max. 588Kbps DL / 1119Kbps UL under Cat M1
Extended temperature range of -40°C to +80°C
