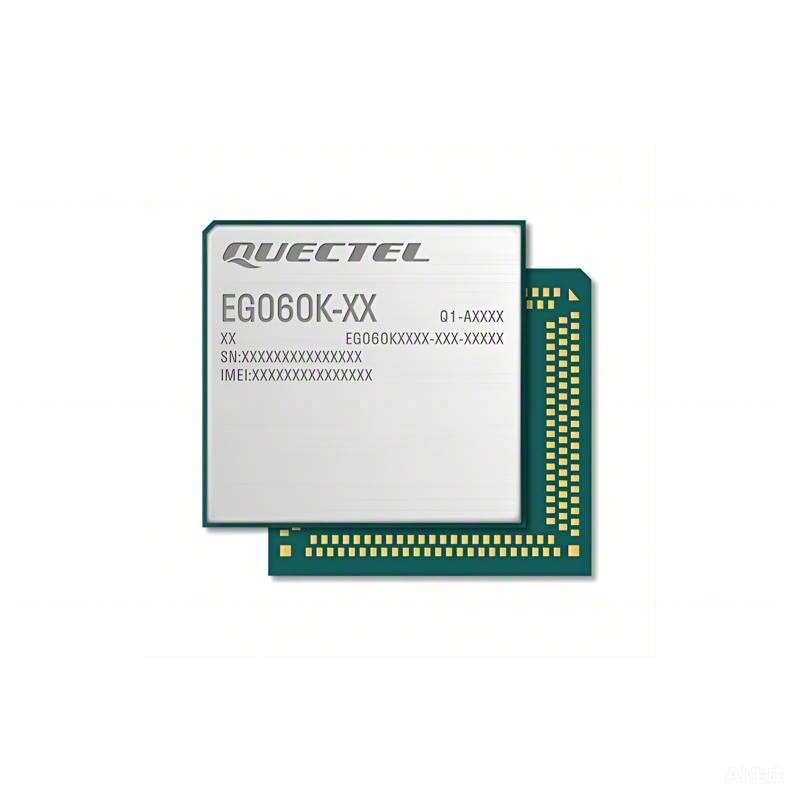

The EG060K is a series of LTE Cat 6 modules optimized specially for M2M and IoT applications. It delivers peak data rates of 300Mbps downlink and 50Mbps uplink. Designed in an LGA form factor, the EG060K is compatible with Quectel’s EG06/EG12/EG18 module (Cat 6/12/18), which enables customers to migrate between different categories.
The EG060K supports Qualcomm® IZat™ location technology gpsOne 9HT (GPS, GLONASS, BDS and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial routers, home gateways, set-top boxes, industrial PDAs, rugged tablet PCs, video transmission, and digital signage.
LTE-A Cat 6 module
LGA package
37mm × 39mm × 2.8mm
Max. data rates of 300Mbps (DL) / 50Mbps (UL)
Extended temperature of -40°C ~ +85°C
