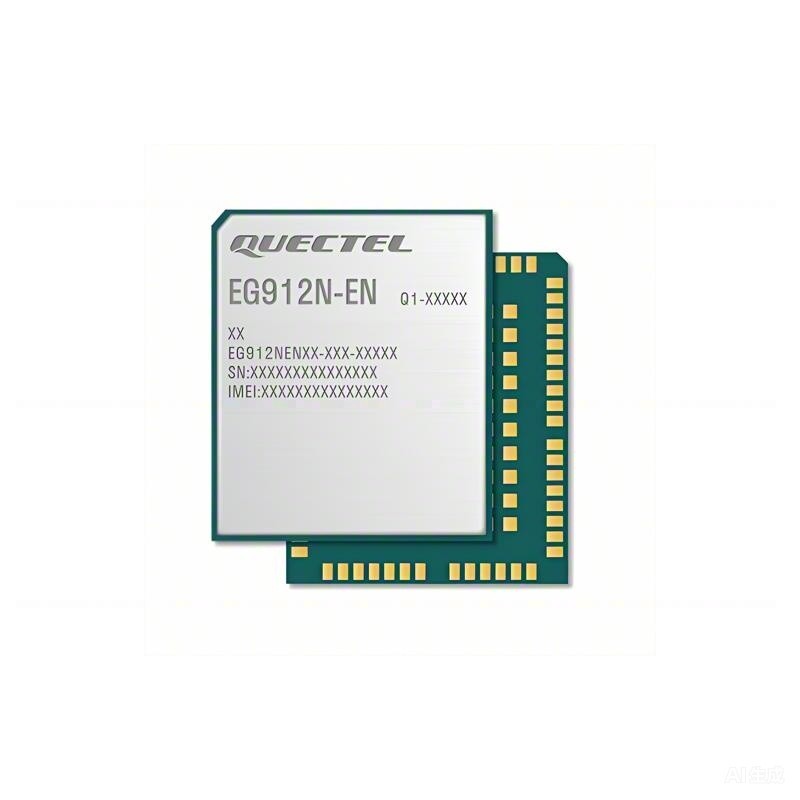

Quectel’s EG912N-EN is an LTE 450 Cat 1 wireless communication module optimized specially for M2M and IoT applications. It supports 450MHz and offers a maximum 10Mbps downlink rate and 5Mbps uplink rate. Designed in a compact and unified form factor, EG912N-EN is compatible with Quectel’s GSM/GPRS M95, LTE Cat M1/Cat NB2/EGPRS BG95, LTE Cat M1/Cat NB1/EGPRS BG96, LTE Cat 1 EG91 and LTE Cat 4 EG95 modules, which allows flexible switching among different networks.
EG912N-EN uses a laser engraving process to ensure a better appearance, strong metal texture, better heat dissipation, and durable label information, which makes it more suitable for automation requirements. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/ 8/ 8.1/ 10/ 11, Linux and Android) allow the module to serve a wide range of M2M and IoT applications such as smart metering, OTT, and IoT gateways.
LTE 450 Cat 1 module
LGA form factor
29.0mm × 25.0mm × 2.4mm
3.5g
Max. data rates of 10Mbps DL / 5Mbps UL
Extended temperature range of -40°C to +85°C
