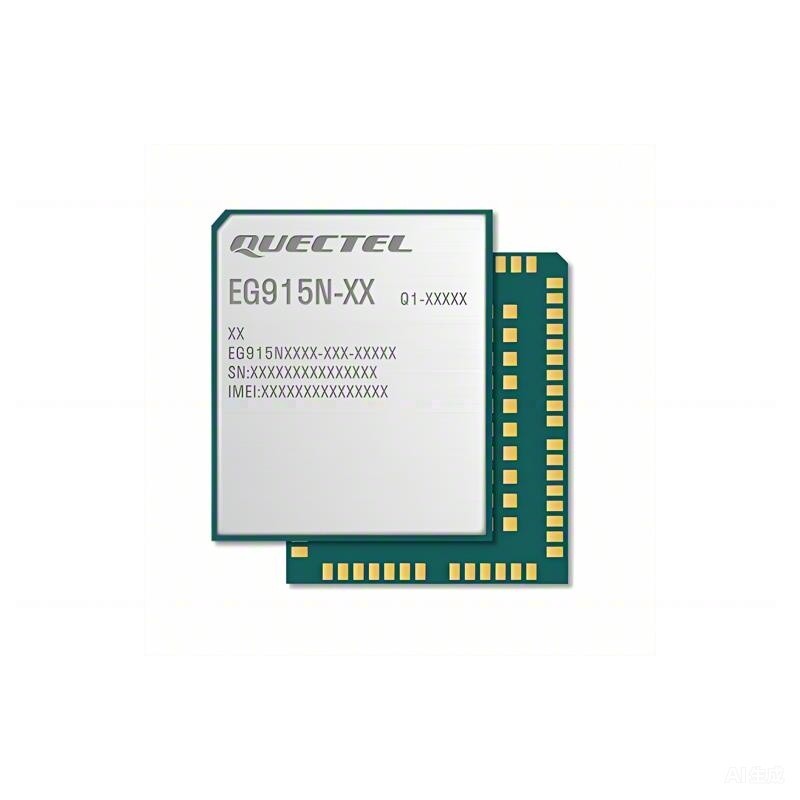

Quectel’s EG915N is a series of LTE Cat 1 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-9 LTE technology, it delivers maximum data rates of 10Mbps downlink and 5Mbps uplink. Designed in a compact and unified form factor, EG915N series modules are compatible with Quectel’s GSM/GPRS M95 module, LTE Cat M1/Cat NB2/EGPRS BG95 series modules, LTE Cat M1/Cat NB1/EGPRS BG96 modules, LTE Cat 1 EG91 series modules and LTE Cat 4 EG95 series modules, which allows flexible switching between different networks.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 10/11, Linux, Android) allow the module to serve a wide range of M2M and IoT applications such as industrial routers, industrial PDAs, tablet PCs, and digital signage.
LTE Cat 1 module
LGA form factor
23.6 mm × 19.9 mm × 2.4 mm
2.46 g
Max. data rates of 10 Mbps DL / 5 Mbps UL
Extended temperature range of -40°C to +85°C
