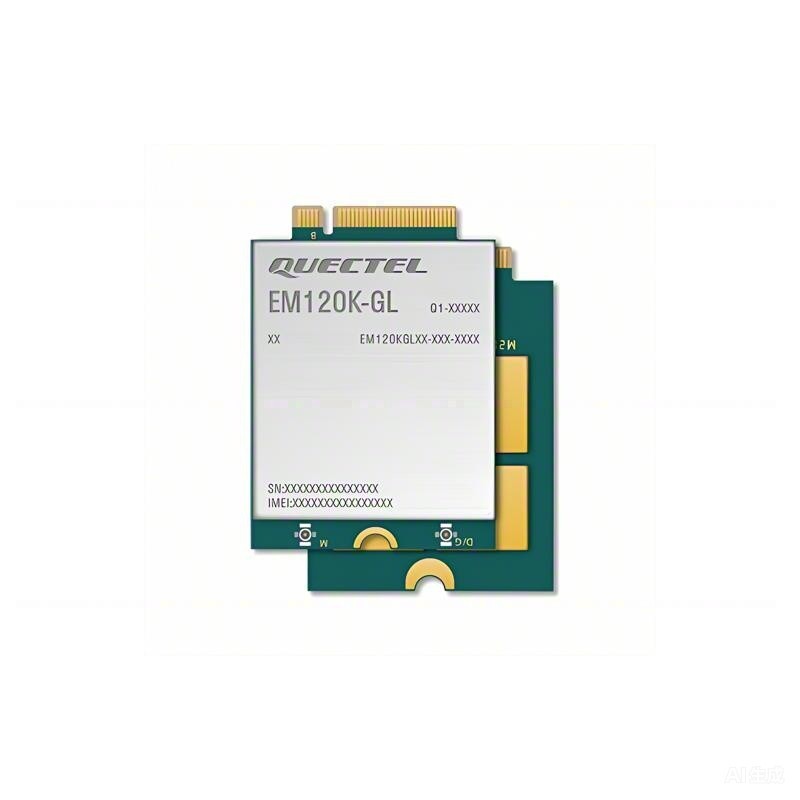

Quectel EM120K-GL is an LTE Advanced Category 12 module. Adopting the 3GPP Release 12 technology, the module supports a theoretical peak data rate of 600 Mbps in the downlink and a theoretical peak data rate of 150 Mbps in the uplink. Designed in M.2 form factor, the module is compatible with Quectel LTE-A Cat 6 module EM06 Series/ EM060K-GL, Cat 12 modules EM12-G/ EM121R-GL/ EM120R-GL, Cat 16 module EM160R-GL and 5G modules RM500Q/ RM502Q Series, which facilitates customers’ migration between different modules. EM120K-GL is designed for the global market and nearly covers all the mainstream carriers worldwide. The module is embedded with a multi-constellation and high-sensitivity GNSS (GPS, GLONASS, BDS, Galileo and QZSS) receiver for positioning. The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows, Linux, Android) extend the applicability of the module to a wide range of applications such as industrial routers, home gateways, set-top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage, etc.
LTE-A Cat 12 module with M.2 form factor
Support DL 3 Carrier Aggregation and 256QAM
Worldwide LTE-A and UMTS/ HSPA+ coverage
Built-in DSSA
Low power mode
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
LTE-A Cat 12 module
M.2 package, key-B
30.0 mm × 42.0 mm × 2.3 mm
Max. data rates of 600Mbps downlink / 150Mbps uplink
Extended temperature range of -40°C to +85°C
