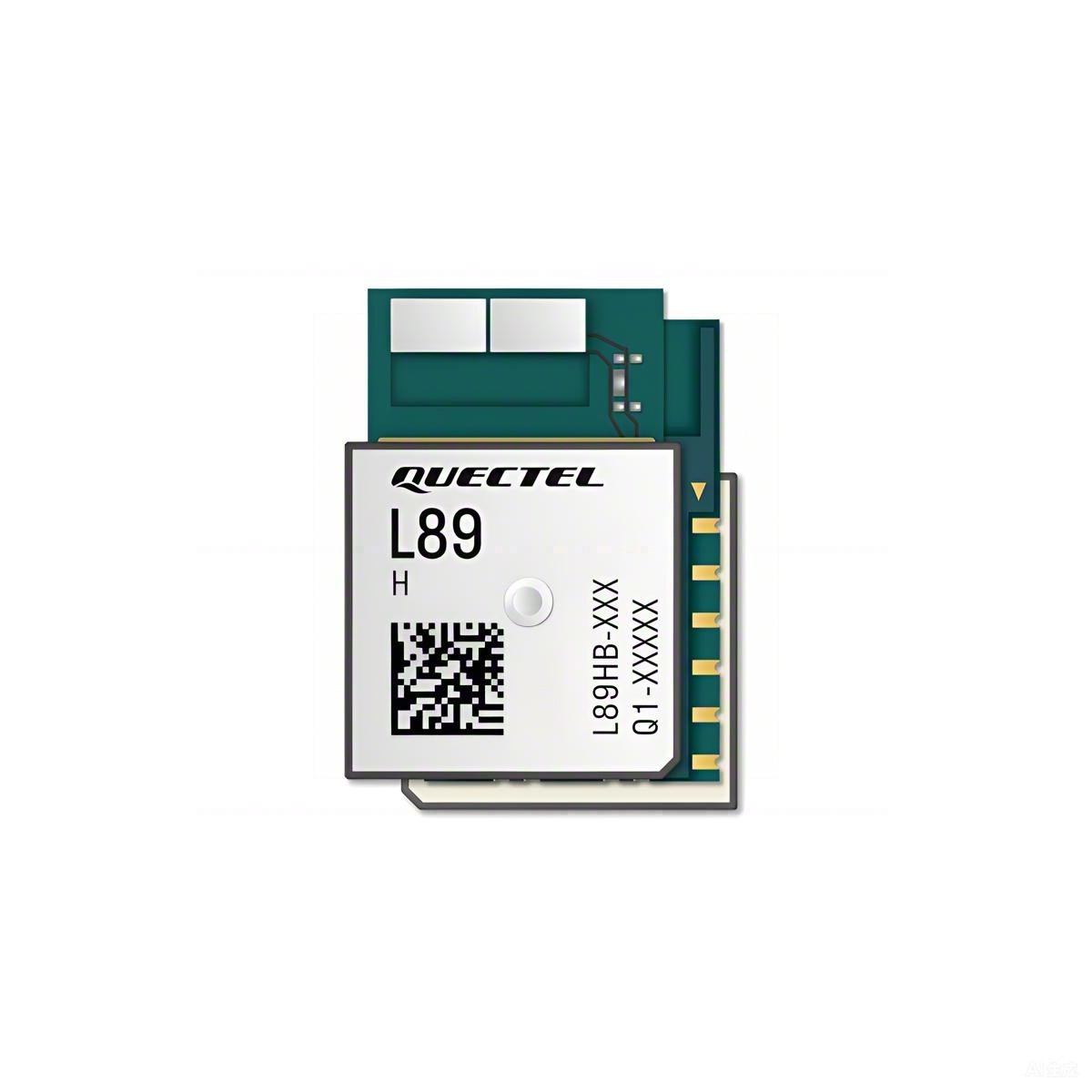

The L89 R2.0 is a dual-band, multi-constellation GNSS module. It features a GNSS chipset engine that achieves exceptional performance by supporting concurrent reception of four GNSS constellations (GPS L1 C/A + Galileo E1 + QZSS L1 C/A + NAvIC L5) by default. It is compatible with Quectel L89 NAvIC-enabled GNSS module.
Compared with GNSS modules that track only GPS, GLONASS, or BDS signals, L89 R2.0 can receive and track more visible satellites, thereby significantly mitigating the multipath effect in deep urban canyons, reducing signal acquisition times, and improving positioning accuracy. With integrated LNAs and SAW filters, the module achieves higher sensitivity and increased anti-interference capability.
L89 R2.0 supports advanced power management enabling low-power GNSS sensing and position fix, which makes the module an ideal solution for power-sensitive and battery-powered systems.
By virtue of its reliable performance and low power consumption, L89 R2.0 is perfectly suited for applications such as real-time tracking systems and sharing economy services.
Multi-GNSS engine for GPS, GLONASS, BDS, Galileo, NAvIC and QZSS
Supports SBAS (WAAS/EGNOS/MSAS*/GAGAN)
Integrated patch antenna and chip antenna
Automatic antenna switching function
Antenna detection and antenna short-circuit protection functions
Integrated LNAs for improved sensitivity
Integrated SAW filters for noise cancellation
Supports UART and I2C interfaces
Supports AGNSS
Antenna GNSS module
26.4mm × 18.4mm × 6.8mm
8.2g
GPS, GLONASS, BDS, IRNSS, Galileo and QZSS
Operating temperature of -40°C to +85°C
