KG200Z, a high-performance LoRa module by Quectel, is designed for long-range wireless transmission applications requiring ultra-low power consumption. It integrates an ARM Cortex-M4 core and supports multiple modulation schemes including LoRa, (G)FSK, (G)MSK, and BPSK. It complies with the LoRaWAN standard protocol and operates globally across the 470–510 MHz and 863–928 MHz LoRa frequency bands. Additionally, the module supports a dual- protocol stack combining Wireless M-Bus and LoRaWAN within the 863–928 MHz band. And it incorporates AES hardware encryption for enhanced security.

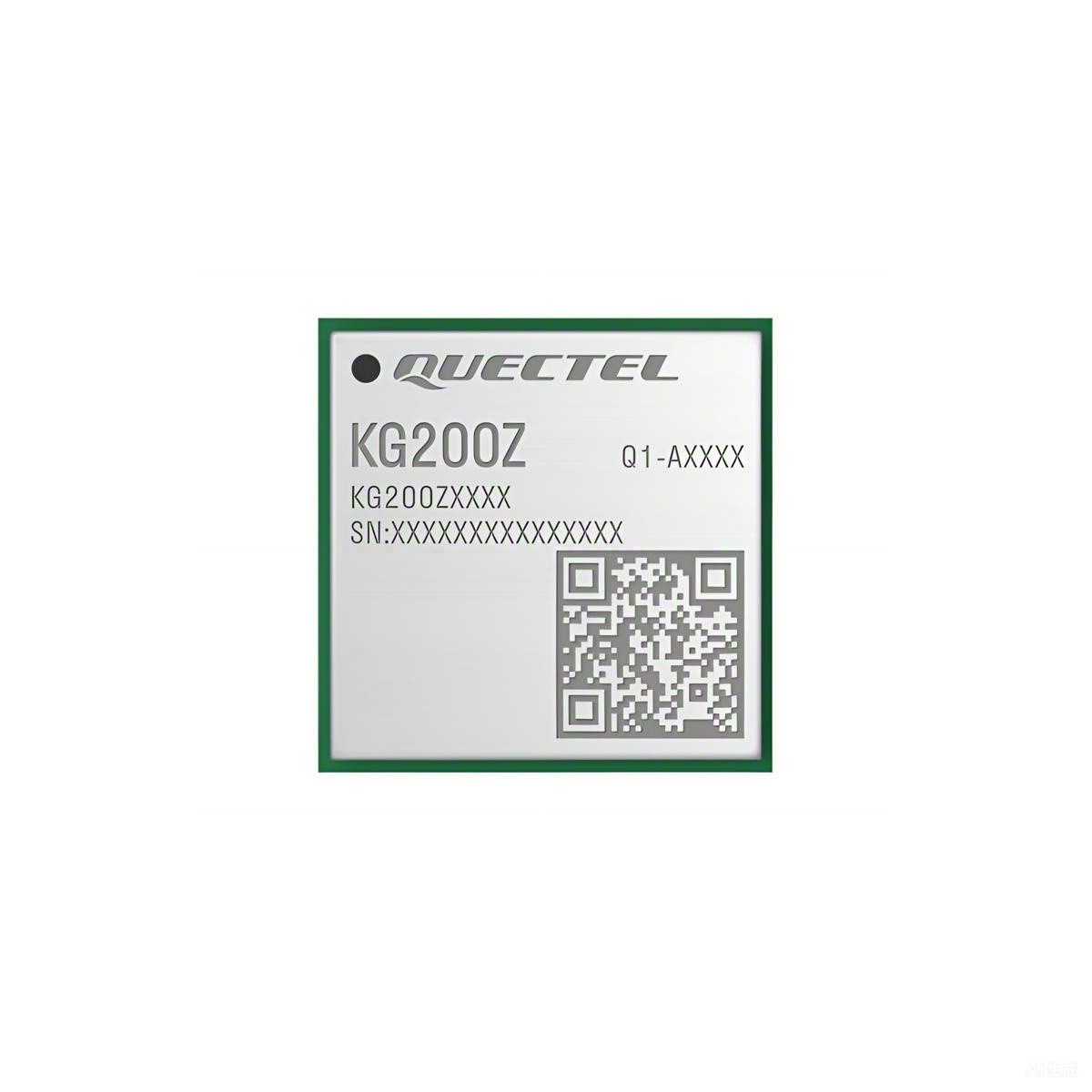

KG200Z boasts a compact form factor of 12.0 mm × 12.0 mm × 1.8 mm with an LGA package, ensuring seamless integration into size-constrained applications and reliable connectivity.
KG200Z connects wirelessly to local and global IoT networks, which enables secure end-to-end communication, mobility, and localized services for IoT applications. Offering strong anti-interference, high sensitivity, a stable network connection, and easy deployment, it delivers reliable data transmission performance at a low cost. This versatility makes KG200Z ideal for a wide range of applications, such as smart locks, door sensors, gas and water leak detection, pet tracking, indoor and outdoor air quality monitoring, HVAC systems, smart parking and traffic monitoring, utility metering, waste management, as well as asset management and tracking.
Long transmission distance: 2–5 km in towns, 10–15 km in suburbs
Ultra-low power consumption (1.7 μA in deep sleep mode)
LoRa modulation technology, high receiver sensitivity (-136 dBm)
Compact profile of 12.0mm × 12.0mm, cost-effective
Stable network connection, strong anti-interference, strong penetration, reliable data transmission
Easier soldering and testing process with LGA package
Multiple interfaces
Dual-protocol stack (Wireless M-Bus + LoRaWAN or Sigfox + LoRaWAN)
High-performance standalone LoRa module
LGA form factor
12 mm × 12 mm × 1.8 mm
0.56 g
Operating temperature of -40 ℃ to +85 ℃
