PH26-800-EX_MiniPCIe
- Category：
4G&5G
- Product description：PH26-800-EX_MiniPCIe

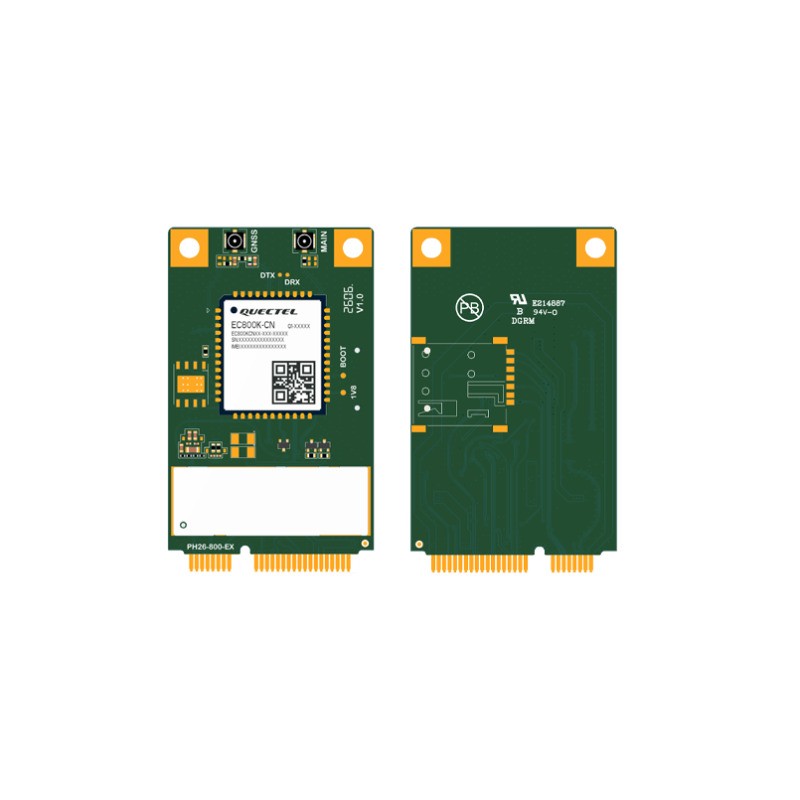

The PH26-800-EX_MiniPCIe module is an LTE module designed using Quectel module and supporting the Mini-PCIe interface.
-
-
PH26-800-EX_MiniPCIe
The PH26-800-EX_MiniPCIe module is an LTE module designed using Quectel module and supporting the Mini-PCIe interface. It can support all LTE Standard Cat 1 modules packaged with a distance of 16mm * 18mm, achieving seamless switching between different modules. The PH26-800-EX_MiniPCIe module is compatible with EG800 series, EC800 series, EG810 series.
PH26-800-EX_MiniPCIe supports deep sleep mode, module sleep and wake-up in design, and wide voltage input technology. The minimum power supply voltage can be as low as 2.8V, effectively solving the problem of fixed power supply range for IOT devices and supporting analog audio interface. And multiple receiving antennas can be used at the receiving end to receive signals, thereby reducing the bit error rate and improving communication quality.
PH26-800-EX_MiniPCIe is equipped with rich network protocols, integrates multiple industrial standard interfaces, various operating systems and software functions (suitable for USB drivers under operating systems such as Windows 7/8/8.1/10/11, Linux, Android, etc.), greatly expanding its application scope in the field of M2M, such as central processing units, routers, data cards, tablets, intelligent security, and industrial grade PDAs
