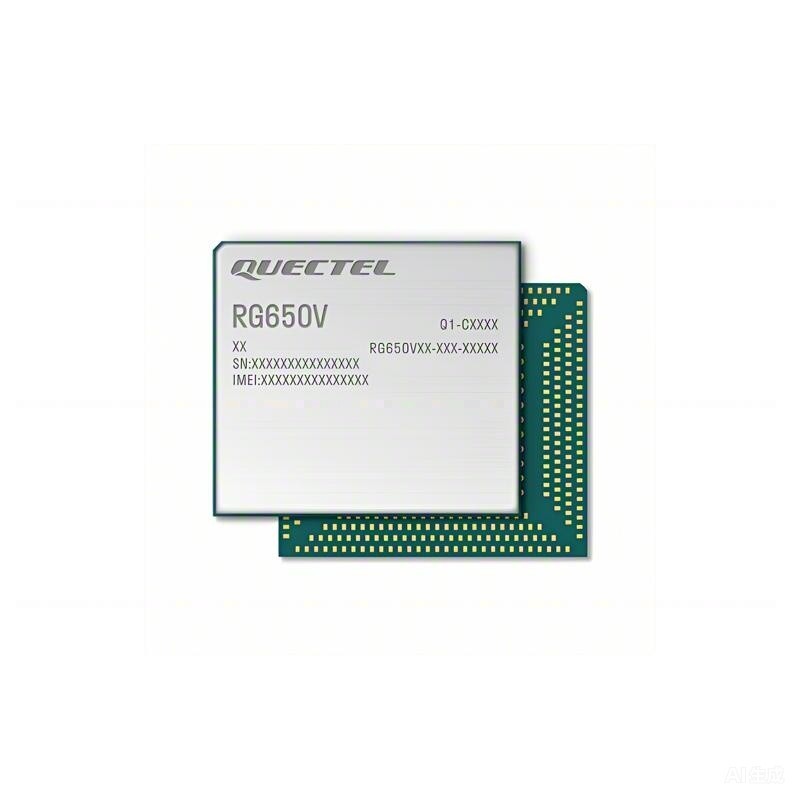

Quectel RG650V is a series of 5G LGA modules optimized specially for IoT and eMBB applications. Adopting the 3GPP Rel-17 technology, it supports both 5G NSA and SA modes with Option 3x/ 3a/ 3 and Option 2 network architectures, and is backward compatible with the 4G/ 3G networks. The module can meet customers’ different application demands for high speed, large capacity, low latency, high reliability, etc.
RG650V series is an industrial-grade module for industrial and commercial applications only. The RG650V series supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces (USB 2.0/ 3.0/ 3.1, PCIe 3.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as business routers, home gateway, STB, industrial laptops, consumer laptops, industrial PDA, and rugged tablet PCs.
5G/4G/3G multi-mode module with LGA form factor, optimized for IoT and eMBB applications
Both NSA and SA modes supported
Worldwide 5G, LTE-A and 3G coverage
Multi-constellation GNSS receiver (optional) available for applications requiring fast and accurate fixes in any environment
Feature refinements: DFOTA and VoNR / VoLTE (optional)
5G Sub-6GHz IoT module
LGA form factor
46.0 mm × 53.0 mm × 3.05 mm
Max. data rates of 4.67 Gbps (DL) / 1.25 Mbps (UL)
Extended temperature range of -40°C to +85°C
