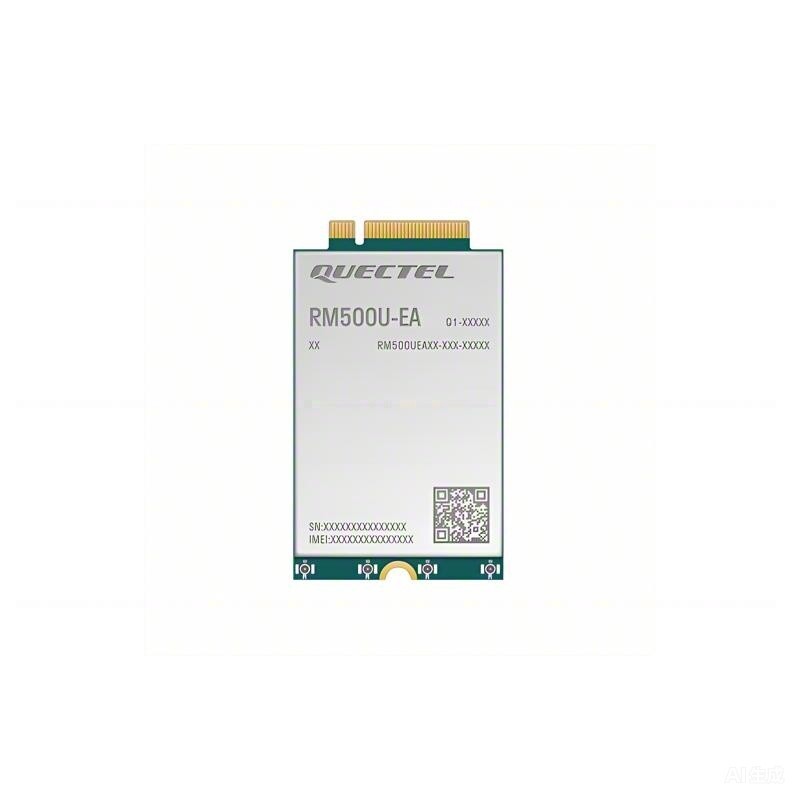

The RM500U series is a 5G Sub-6 GHz module specifically optimized for IoT/ eMBB/ URLLC applications. With the 3GPP Release 15/Release 16 technology, it supports both 5G NSA and SA modes, and is backward compatible with 4G/3G networks. Designed in an M.2 form factor, RM500U is compatible with Quectel 5G RM500Q series modules. RM500U is an industrial-grade module for industrial and commercial applications only.
The RM500U series contains three variants: RM500U-CN, RM500U-EA and RM500U-CNV. RM500U series provides a rich set of built-in network protocols, integrates industry-standard interfaces and supports multiple drivers and software functions (such as USB/ PCIe drivers for Windows, Linux and Android operating systems). It has greatly expanded its application scope in IoT/ eMBB/ URLLC, such as industrial router, home gateway, STB, industrial PDA, rugged tablet PC, video transmission and digital signage.
5G Sub-6GHz module with M2 form factor, optimized for IoT/ eMBB / URLLC applications
Worldwide 5G and LTE-A coverage
5G NSA and SA modes supported
Feature refinements: DFOTA, VoLTE and VoNR
5G sub-6GHz module
M2 form factor
52mm × 30mm × 2.3mm (-CNV)
52mm × 30mm × 3.75mm (-EA)
Max data rates of 2.6Gbps (DL)/1Gbps (UL)
Extended temperature range of -40°C ~ +85°C
