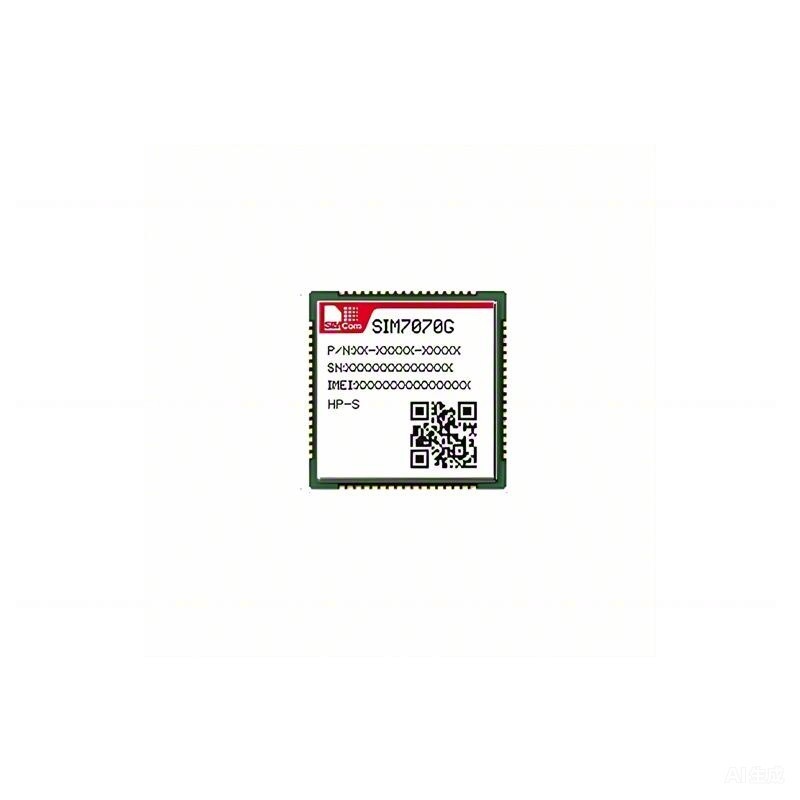

SIM7070G-HP-S is a 3GPP NTN (non-terrestrial network) satellite communication module which supports 3GPP Rel- 17 (loT-NTN) at L-band (B255) and S-band (B256/B23) frequencies for satellite communications. Which supports wireless communication modes of Cat-M/Cat-NB2.
SIM7070G-HP-S 是一款3GPP NTN（非地面网络）卫星通信模块，支持3GPP Rel-17（物联网-NTN）标准，工作频段为L频段（B255）和S频段（B256/B23），用于卫星通信。该模块支持Cat-M/Cat-NB2无线通信模式。
Employ satellite connectivity solutions that work with any satellite network globally using the 3GPP Rel.17 5G IoT- NTN protocol.
采用支持全球任何卫星网络的卫星连接解决方案，该方案基于3GPP第17版5G物联网-NTN协议。
SIM7070G-HP-S adopts LCC+LGA form factor and has a compact size of 24mm*24mm which makes it ideal for compact products design.
SIM7070G-HP-S 采用LCC+LGA封装形式，尺寸紧凑，仅为24mm*24mm，非常适合用于紧凑型产品设计。
SIM7070G-HP-S has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc. The SIM7070G-HP-S is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.
SIM7070G-HP-S 具备强大的扩展性，接口丰富，包括UART、GPIO、PCM、SPI、I2C等。SIM7070G-HP-S专为需要低延迟、低吞吐量数据通信且适用于多种无线电传播条件的应用而设计。由于其性能、安全性与灵活性的独特组合，该模块非常适合用于M2M应用，例如计量、资产跟踪、远程监控、电子医疗等。
Product Advantages产品优势
- NTN Satellite communication module
- NTN卫星通信模块
- IoT-NTN/ LTE Cat-M/NB2 module with Ultra-low power consumption
- 具有超低功耗的IoT-NTN/LTE Cat-M/NB2模块
- With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7070G-HP-S can extend battery life up to 10 years
- 采用省电模式(PSM)和扩展非连续接收(eDRX)，SIM7070G-HP-S的电池续航时间最长可达10年
- SIM7070G-HP-S provides deeper coverage enhancement compared to GSM
- SIM7070G-HP-S相比GSM提供了更深度的覆盖增强
- The form factor and AT commands of SIM7070G-HP-S are compatible with SIM7000X/SIM800F/SIM900
- SIM7070G-HP-S的外形尺寸和AT命令与SIM7000X/SIM800F/SIM900兼容
