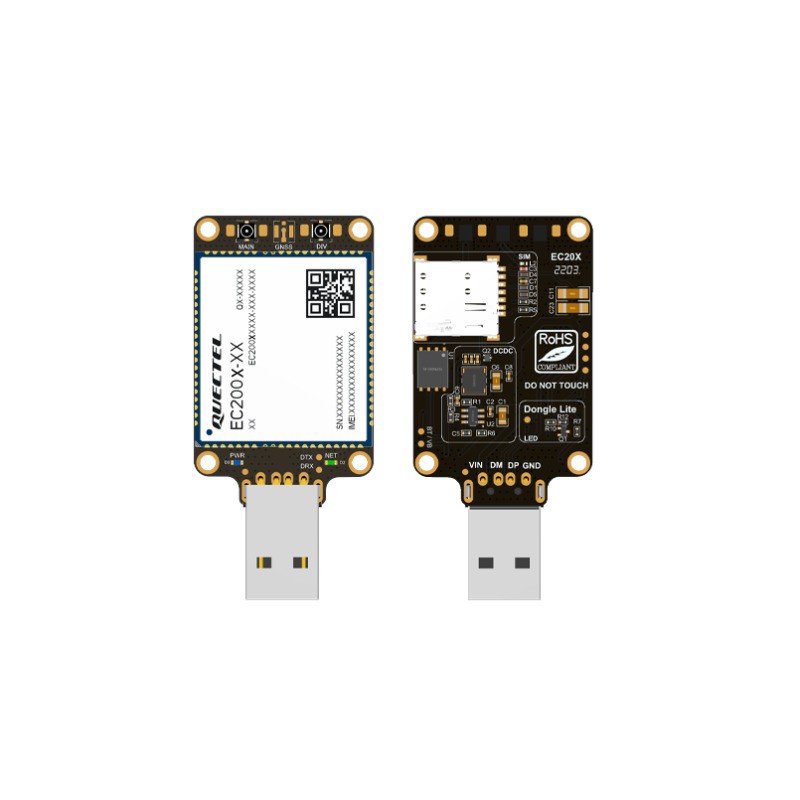

PH-EC200X_USB Dongle

The PH-EC200X_USB Dongleseries is an LTE Cat 4 wireless communication module designed by Quectel specifically for the M2M and IoT fields. It adopts 3GPP Rel.9 LTE technology and supports a maximum downlink rate of 150 Mbps and a maximum uplink rate of 50 Mbps. At the same time, the PH-EC200X_USB Dongle series is compatible with the LTE Standard EC25 series, EC21 series, EC20-CE, EG25-G, EC200D-CN, EC200U series, EC200N-CN, and UMTS/HPSA+UC200T series modules of mobile communication in terms of packaging, achieving an easy and smooth transition from 3G networks to 4G networks.

The PH-EC200X_USB Dongle series has rich built-in network protocols, integrates multiple industrial standard interfaces, and supports multiple driver and software functions (suitable for USB drivers under operating systems such as Windows 7/8/8.1/10, Linux, Android, etc.), greatly expanding its application scope in the M2M field, such as MIFI, OTT, CPE, routers, data cards, tablets, security, and industrial grade PDAs.
