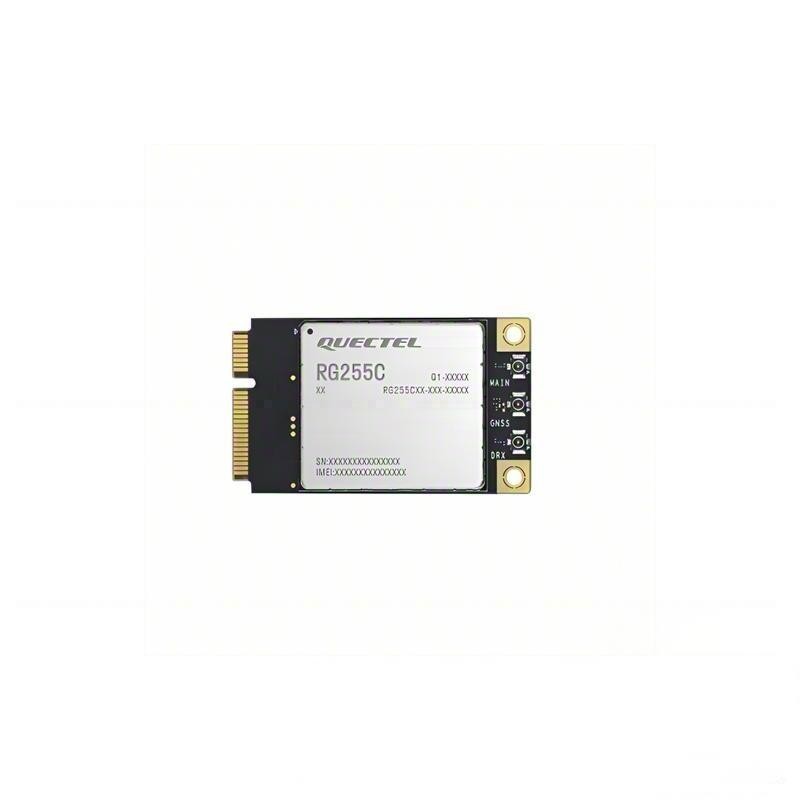

Quectel RG255C Mini PCIe series module is a 5G RedCap module adopting standard PCI Express® Mini Card form factor (Mini PCIe). Adopting the 3GPP Rel-17 RedCap technology, the module supports 5G LAN*/ Slicing/ URLLC, etc., with a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 GHz SA modes , and is backward compatible with 3GPP Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc.
RG255C Mini PCIe series module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, NavlC*, BDS, QZSS and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 10/ 11, Linux and Android) extend the applicability of the module to a wide range of RedCap applications.
Worldwide 5G/ 4G coverage
5G SA mode, 5G LAN*/ URLLC/ slicing supported
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (optional)
Feature refinements: DFOTA and VoNR/ VoLTE (optional)
5G RedCap module
Mini PCIe form factor
30 mm × 50.95 mm × 4.95 mm
Max. data rates of 223 Mbps DL / 123 Mbps UL
Extended temperature range of -40°C to +85°C
