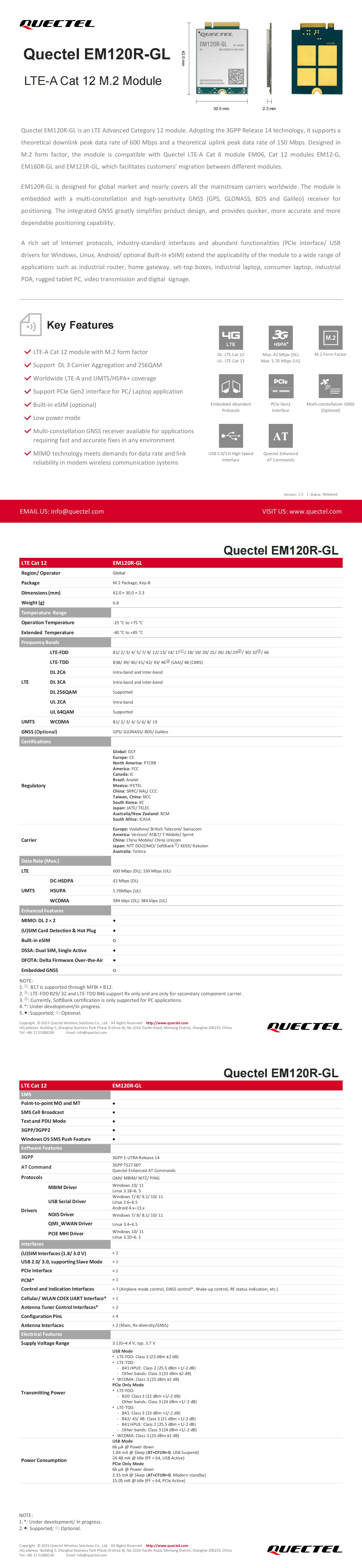

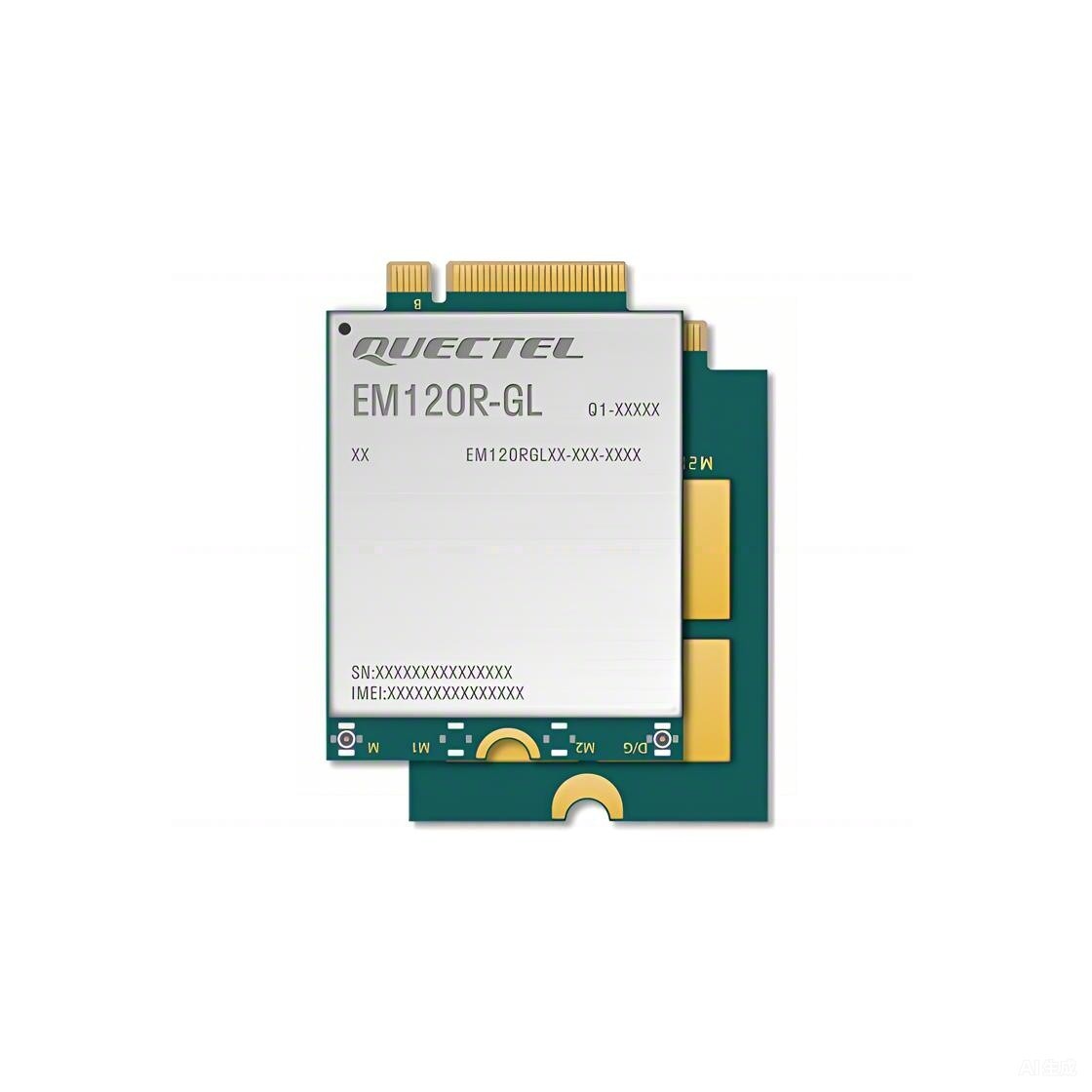

Quectel EM120R-GL is an LTE Advanced Category 12 module. Adopting the 3GPP Release 14 technology, it supports a theoretical downlink peak data rate of 600 Mbps and a theoretical uplink peak data rate of 150Mbps. Designed in M.2 form factor, the module is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 modules EM12-G, EM160R-GL and EM121R-GL, which facilitates customers’ migration between different modules.
EM120R-GL is designed for global market and nearly covers all the mainstream carriers worldwide. The module is embedded with a multi-constellation and high-sensitivity GNSS (GPS, GLONASS, BDS and Galileo) receiver for positioning. The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/ USB drivers for Windows, Linux, Android) extend the applicability of the module to a wide range of applications such as industrial router, home gateway, set-top boxes, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video transmission and digital signage.
Supports DFOTA
Supports DTMF
Supports MIMO
USB 2.0 high speed interface
Multi-constellation GNSS receiver
LTE Cat 12 module
42.0mm × 30.0mm × 2.3mm
M.2 form factor
Max. downlink 600Mbps / 150Mbps uplink under LTE
Extended temperature range of -40°C to +85°C
