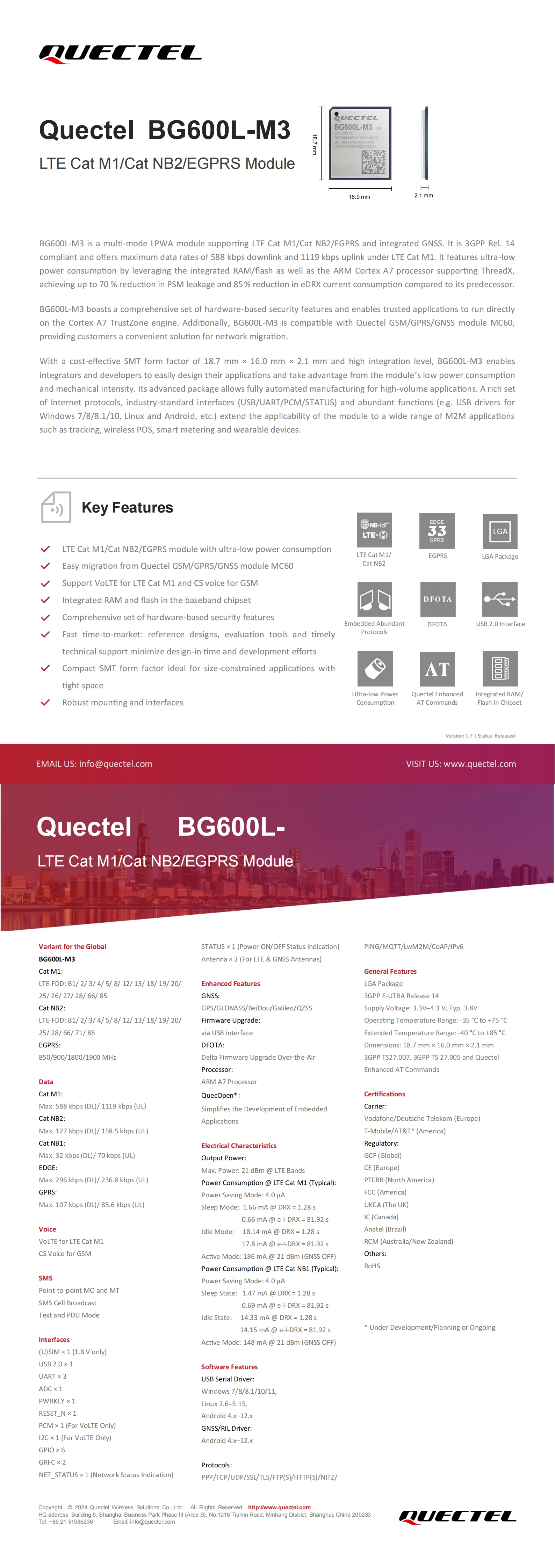

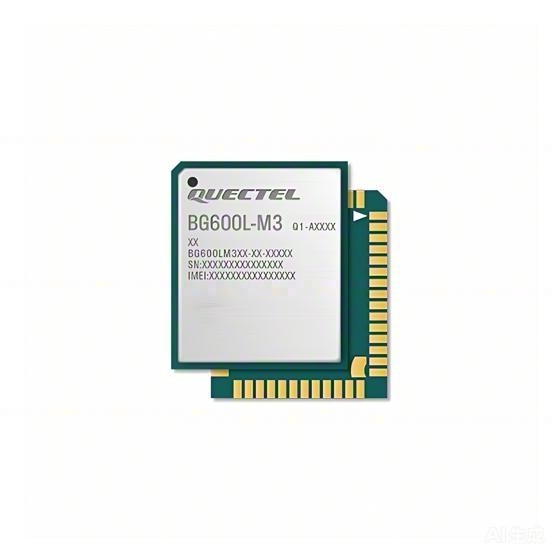

BG600L-M3 is a multi-mode LPWA module supporting LTE Cat M1/Cat NB2/EGPRS and integrated GNSS. It is 3GPP Rel. 14 compliant and offers maximum data rates of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70 % reduction in PSM leakage and 85 % reduction in eDRX current consumption compared to its predecessor.
BG600L-M3 boasts a comprehensive set of hardware-based security features and enables trusted applications to run directly on the Cortex A7 TrustZone engine. Additionally, BG600L-M3 is compatible with Quectel GSM/GPRS/GNSS module MC60, providing customers a convenient solution for network migration.
With a cost-effective SMT form factor of 18.7 mm × 16.0 mm × 2.1 mm and high integration level, BG600L-M3 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Its advanced package allows fully automated manufacturing for high-volume applications. A rich set of Internet protocols, industry-standard interfaces (USB/UART/PCM/STATUS) and abundant functions (e.g. USB drivers for Windows 7/8/8.1/10, Linux and Android, etc.) extend the applicability of the module to a wide range of M2M applications such as tracking, wireless POS, smart metering and wearable devices.
Supports LTE Cat M1/Cat NB2/EGPRS
Compatible with Quectel GSM/GPRS/GNSS module MC60
ARM A7 Processor
Integrated RAM and flash memory in baseband chipset
USB 2.0 interface
Supports DFOTA
Supports VoLTE for LTE Cat M1 and CS voice for GSM
Comprehensive set of hardware-based security features
Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design and development efforts
Robust mounting and interfaces
Multi-mode LPWA module
18.7mm × 16.0mm × 2.1mm
SMT form factor
LGA package
Max. 588Kbps downlink / 1119Kbps uplink under LTE Cat M1
Extended temperature range of -40°C to +85°C
