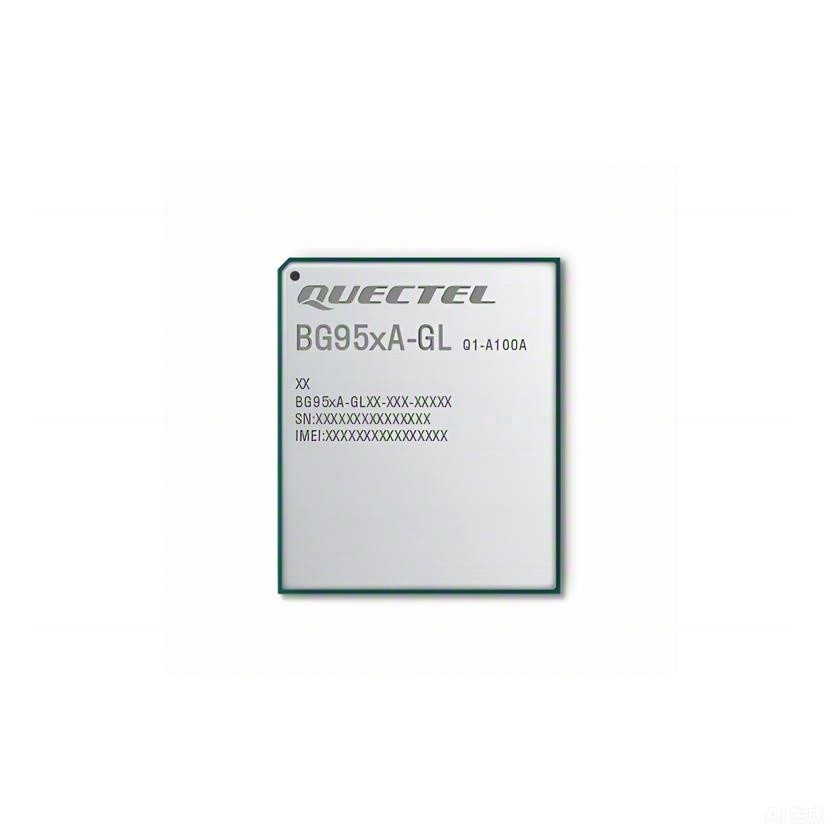

BG95xA-GL is a 5G-ready ultra-compact LPWA module compliant with 3GPP E-UTRA Release 13/ 14 specification. The module supports LTE Cat M1/ NB1/ NB2/ GPRS bands. Besides, it features ultra-low power consumption implemented by integrated RAM and Flash, which help reduce current consumption to rather low levels in various modes, including PSM, eDRX etc. It is further integrated with a GNSS engine that supports GPS, GLONASS, Galileo, BDS and QZSS systems. BG95xA-GL comes in three variants: BG950A-GL, BG951A-GL and BG955A-GL.
BG95xA-GL boasts a comprehensive hardware-based security feature—Integrated Security Elements (ISE). With an ultra-compact SMT form factor of 23.6 mm × 19.9 mm × 2.2 mm and a high integration level, the module enables integrators and developers to design applications easily leveraging its low power consumption and compact structure design. The BG95xA-GL’s advanced LGA package allows for fully automated manufacturing required for large-scale applications.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities extend the applicability of the module to a wide range of M2M applications, such as wireless POS, smart metering, tracking, wearable devices, and many more.
Extremely compact LTE Cat M1/NB1/NB2/GPRS module with ultra-low power consumption
Super slim profile in LGA package
Embedded with abundant Internet service protocols
Support DFOTA
Support second development of embedded applications, running FreeRTOS
A rich set of external interfaces (including RF control interfaces) that ensure convenient applications
Fast time-to-market: reference designs, evaluation tools and timely technical support minimize time and efforts in design and development
LTE Cat M1/NB1/NB2 module
23.6mm × 19.9mm × 2.2mm
2.15g
SMT form factor
LGA package
Extended temperature of -40°C to +85°C
