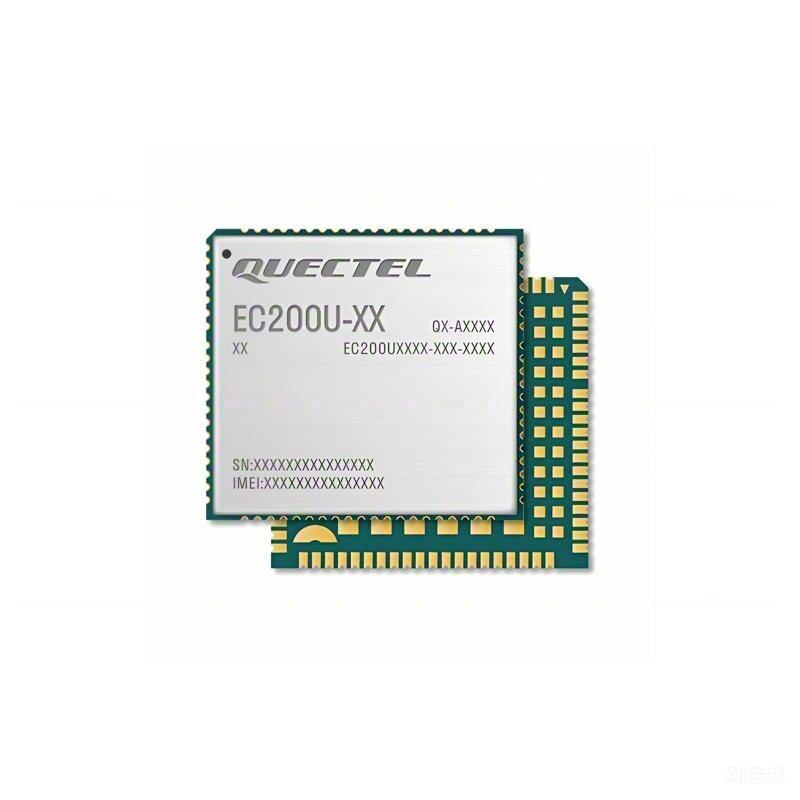

Quectel EC200U is a series of LTE Cat 1 bis module optimized specially for M2M and IoT applications. Adopting 3GPP Rel-13 LTE technology, it delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, EC200U series is compatible with Quectel multi-mode LTE Standard EC20-CE, EC21 series, EC25 series, EG21-G and EG25-G, ensuring that it can easily migrate among compatible modules. EC200U series also supports standard Mini PCIe packages to meet the needs of different industry applications.
EC200U series contains three variants: EC200U-CN, EC200U-EU and EC200U-AU, which meets the frequency band coverage of different countries and regions. Using a laser engraving process, EC200U series features a better appearance, strong metallic texture, better heat dissipation capability and durable label information, which makes it ideally suited for automation requirements.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 10/11, Linux, Android) allow the EC200U series to serve a wide range of M2M and IoT applications such as POS, POC, ETC, shared equipment, data cards, energy control and monitoring, smart safety, and industrial PDAs.
LTE Cat 1 bis module
LCC form factor
28.0 mm × 31.0 mm × 2.4 mm
4.1 g
Max. data rates of 10 Mbps DL / 5 Mbps UL
Extended temperature range of -40°C to +85°C
