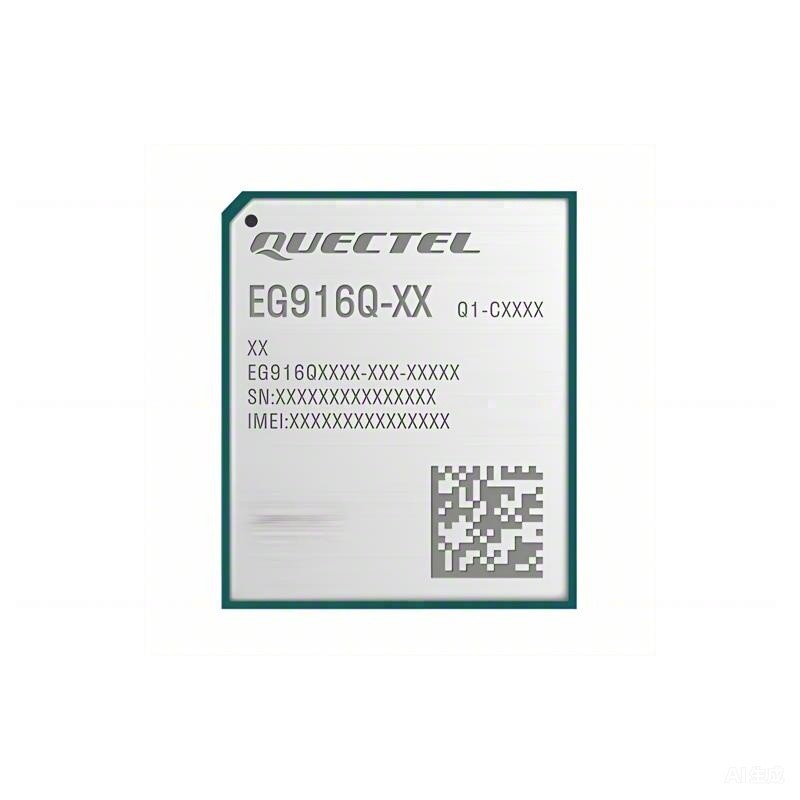

EG916Q-GL is an LTE Cat 1 bis module optimized specially for M2M and IoT applications. Adopting the 3GPPRel-14 LTE technology, it delivers maximum data rates up to 10Mbps downlink and 5Mbps uplink. Designed in a compact and unified form factor, EG916Q-GL is compatible with Quectel LPWA BG95 series and BG96 modules and LTE Standard EG91 series, EG95 series and EG915Q series modules.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 8.1/10/11, Linux, and Android) extend the applicability of the module to a wide range of M2M and IoT applications, such as asset management, commercial telematics, payment, RMAC (remote monitoring and control applications), smart safety and automation, smart metering and smart grid.
LTE Cat 1 bis module
LGA form factor
26.5 mm × 22.5 mm × 2.4 mm
2.6 g
Max. data rates of 10 Mbps DL / 5 Mbps UL
Extended temperature range of -40°C to +85°C
