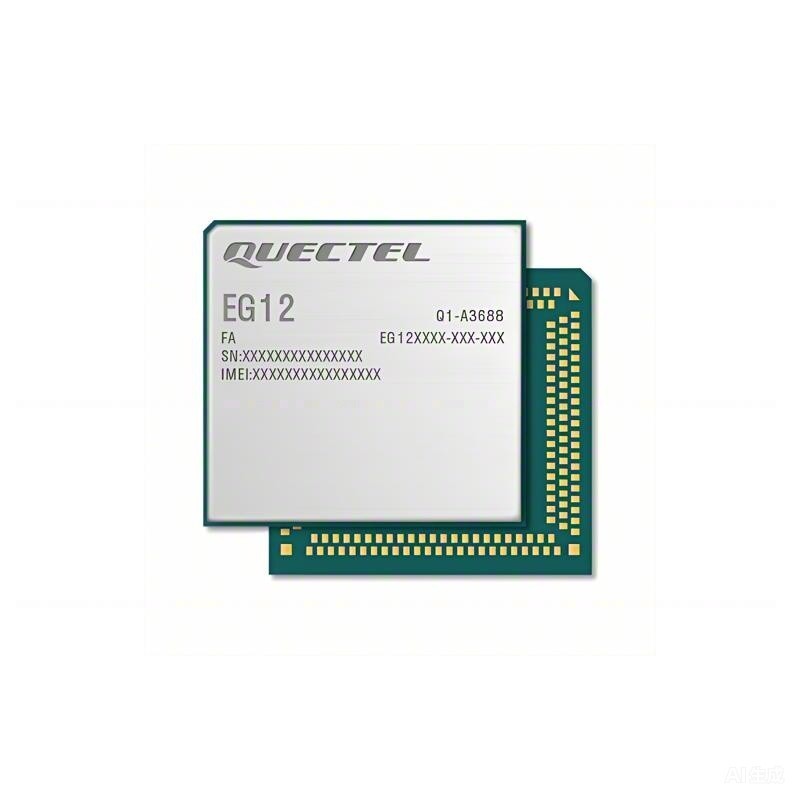

Quectel EG12-EA is a series of LTE Advanced category 12 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 600 Mbps downlink and 150 Mbps uplink peak data rates. Designed in an LGA form factor, EG12 series is compatible with Quectel Cat 6/ 18 module series EG06/ EG18, which will help customers to migrate between different categories.
EG12 series supports Qualcomm® IZat™ location technology Gen9HT-Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 8.1/ 10/ 11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as 4G router, CPE, wireless POS terminal, consumer laptop, industrial PDA, rugged tablet PC and video transmission.
LTE-A Cat 12 module with LGA form factor, optimized for
Support DL 3CA, 256QAM and 4 x 4 MIMO
Worldwide LTE-A and UMTS/ HSPA+ coverage
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Feature refinements: supports DFOTA and DTMF
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
LTE-A Cat 12 module
39.5mm x 37mm x 2.8mm
9.0g
LGA form factor
Max. 600Mbps downlink / 150Mbps uplink under LTE
Extended temperature range of -40°C to +85°C
