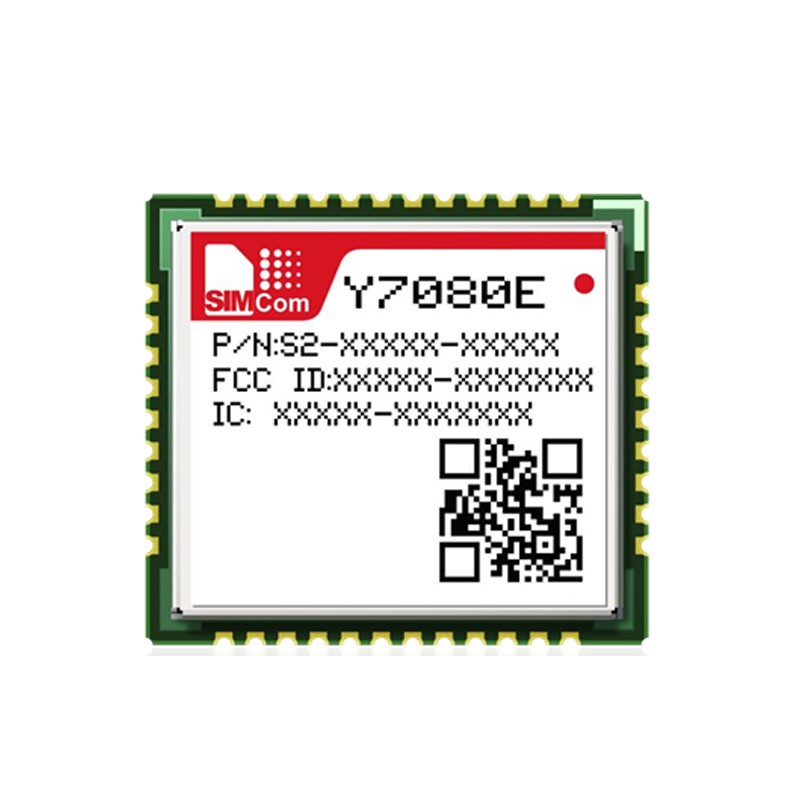

The Y7080E is Multi-Band NB-IoT module solution in a SMT type.
Y7080E是一款采用SMT封装的多频段NB-IoT模块解决方案。
It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
它具有强大的扩展能力，配备丰富的接口，包括UART、GPIO等。该模块为客户的应用提供了极高的灵活性和便捷的集成性。
The package of Y7080E is compatible with mainstream models on the market.
Y7080E的包装与市面上主流型号兼容。
It is designed for applications that need low power consumption, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..
它专为需要低功耗、低吞吐量数据通信且适用于多种无线电传播条件的应用而设计。凭借其独特的性能、安全性和灵活性组合，该模块非常适合用于机器对机器（M2M）应用，例如计量、资产追踪、远程监控、电子医疗等。
Product Advantages产品优势
● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), Y7080E can extend battery life to 10 years
● 采用省电模式(PSM)和扩展不连续接收(eDRX)，Y7080E可将电池寿命延长至10年
● Y7080E provides deeper coverage enhancement compared to GSM
● Y7080E提供的覆盖增强效果优于GSM
Product Details产品详情
General Features通用特性
Frequency Bands: Cat-NB2 B3/B5/B8/B20/B28
频段：Cat-NB2 B3/B5/B8/B20/B28
Control Via AT Commands
通过AT命令控制
Supply voltage range:
供电电压范围：
3.0V~4.2V [NB+GNSS]
2.2V~4.2V [NB only] 2.2V~4.2V [仅NB]
Operation temperature: -40℃ to +85℃
工作温度：-40℃至+85℃

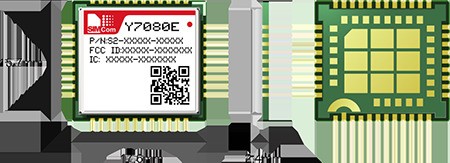

Dimensions: 17.6×15.7×2.4 mm
尺寸：17.6×15.7×2.4毫米
Weight: 1.2g±0.2g 重量：1.2克±0.2克
GNSS(Optional): Support GPS/GLONASS/Galileo*
Data数据
Uplink: 159Kbps Downlink:127Kbps
上行：159Kbps 下行：127Kbps
GNSS
Time-To-First Fix2:
首次定位时间2：
Cold starts 29s
冷启动 29秒
Hot starts <2s 热启动 <2秒
Consumption 功耗
● NB only ● 仅NB
1.7uA@ PSM
0.48mA @ Idle（DRX=2.56s）
空闲时0.48mA（DRX=2.56s）
0.25mA @ Idle （eDRX=40.96s；PTW=81.92s）
空闲时0.25mA（eDRX=40.96s；PTW=81.92s）
Other Features其他特性
Firmware update via UART
通过UART进行固件更新
TCP/UDP/HTTP/DNS/NTP/PING/TLS*/DTLS*
LWM2M*/COAP/MQTT
OneNET/CTWING
DFOTA
Interfaces接口
UART
USIM card (1.8V/3V) USIM卡（1.8V/3V）
Netlight 净光
RI
ADC
GPIO
Certifications认证
RoHS/REACH/NAL/SRRC/Mobile*/Unicom*/Telecom/CE(RED)/UKCA/GCF/Orange*/TIM*/Telefonica/Deutsche Telekom/Vodafone Spain/Anatel
