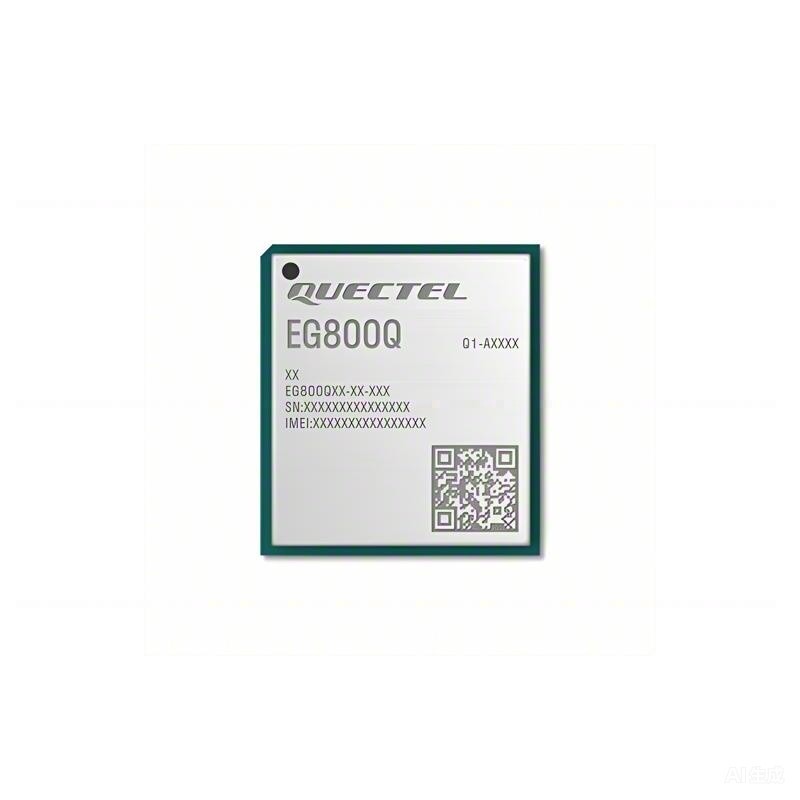

Quectel EG800Q is a series of LTE Cat 1 bis modules optimized specially for M2M and IoT applications. Designed in a compact and unified form factor and based on 3GPP Rel-14 LTE technology and supporting Cat 1 bis, it delivers maximum data rates of up to 10 Mbps downlink and 5 Mbps uplink. Designed in a compact and unified form factor.
Quectel EG800Q 是一系列专为M2M和物联网应用优化的LTE Cat 1 bis模块。该模块采用紧凑统一的外形设计，基于3GPP Rel-14 LTE技术，支持Cat 1 bis，可提供最高达下行10 Mbps、上行5 Mbps的数据速率。采用紧凑统一的外形设计。
The EG800Q series contains 5 variants: EG800Q-EU, EG800Q-NA, EG800Q-IN, EG800Q-NAD, and EG800Q-GL.
EG800Q系列包含5种型号：EG800Q-EU、EG800Q-NA、EG800Q-IN、EG800Q-NAD和EG800Q-GL。
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 8.1/ 10/ 11, Linux, Android) allow the module to serve a wide range of M2M and IoT applications such as asset management, commercial telematics, payments, RMAC (Remotely Managed Access Control), smart safety and automation, smart metering and smart grid.
丰富的互联网协议、行业标准接口以及多样化的功能（适用于Windows 8.1/10/11、Linux、Android的USB串口驱动程序）使该模块能够广泛应用于各类M2M和物联网应用，例如资产管理、商业远程信息处理、支付、RMAC（远程管理门禁控制）、智能安全与自动化、智能计量以及智能电网。
LTE Cat 1 bis module
LGA form factor
15.8 mm × 17.7 mm × 2.4 mm
Max. data rates: 10 Mbps DL / 5 Mbps UL
Extended temperature of -40 °C to +85 °C
