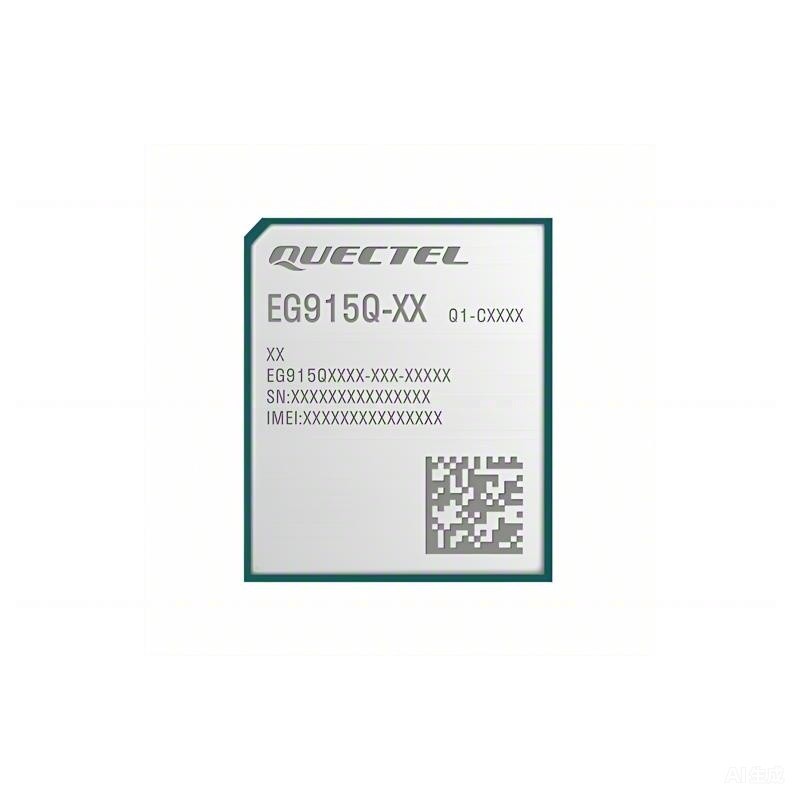

Quectel EG915Q series is a series of LTE Cat 1 bis modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-14 LTE technology, it delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in a compact and unified form factor, EG915Q series is compatible with Quectel LPWA BG95 series/BG96/ BC95-G modules and LTE Standard EG91/ EG95 series modules.
The EG915Q series contains 3 variants: EG915Q-NA, EG915Q-JP and EG915Q-AF. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 8.1/ 10/ 11, Linux, and Android) extend the applicability of the modules to a wide range of M2M and IoT applications, such as asset management, commercial telematics, payment, RMAC (remote monitoring and control applications), smart safety and automation, smart metering and smart grid.
LTE Cat 1 bis module
LGA form factor
23.6 mm × 19.9 mm × 2.4 mm
2.3 g
Max. data rates of 10 Mbps DL and 5 Mbps UL
Extended temperature range -40°C to +85°C
