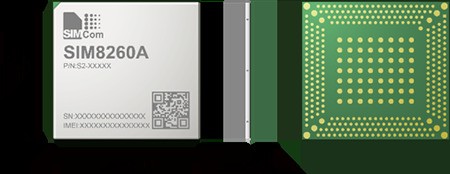

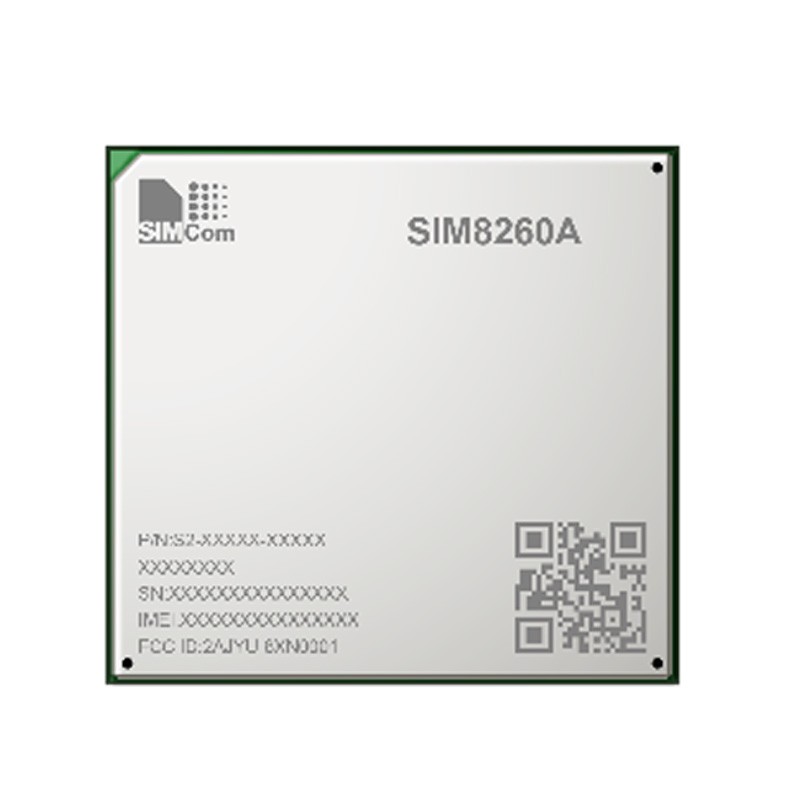

SIM8260A

The SIM8260A is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+  module which supports R16 5G NSA/SA.
SIM8260A 是一款多频段 5G NR/LTE-FDD/LTE-TDD/HSPA+ 模块，支持 R16 5G NSA/SA。

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.
它具有强大的扩展能力，配备丰富的接口，包括PCIe、USB3.1、GPIO等。该模块为客户的应用提供了极大的灵活性和便捷的集成性。

The SIM8260A adopts LGA form factor. AT commands of  the SIM8260A are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.
SIM8260A采用LGA封装形式。SIM8260A的AT命令与SIM7912G/SIM8200X-M2系列模块兼容。这有助于最大限度地降低客户的投入，并实现快速上市。

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
它专为在各种无线电传播条件下需要高吞吐量数据通信的应用而设计。凭借其独特的性能、安全性和灵活性组合，该模块非常适合众多应用。



Product Advantages产品优势
- LGA form factor with abundant interfaces
- LGA外形，接口丰富

- High throughput data communication
- 高吞吐量数据通信

- AT commands of  the SIM8260A are compatible with SIM7912G/SIM8200X-M2 series modules
- SIM8260A的AT命令与SIM7912G/SIM8200X-M2系列模块兼容



Product Details产品详情
Form Factor: LGA 外形尺寸：LGA
Dimensions(mm): 41.0*43.6*2.8
尺寸（毫米）：41.0*43.6*2.8
Frequency Bands:
频段：

5G Sub-6G: n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
5G Sub-6G：n1/n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE-FDD：B1/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71

LTE-TDD: B38/B41/B42/B43/B46*/B48
LTE-TDD：B38/B41/B42/B43/B46*/B48

WCDMA: B1/B2/B4/B5
WCDMA：B1/B2/B4/B5

GNSS: GPS/GLONASS/Beidou/Galileo/QZSS
GNSS：GPS/格洛纳斯/北斗/伽利略/QZSS

Temperature: -30℃ ~ +70℃
温度：-30℃ ~ +70℃

Electrical Features电气特性
Supply Voltage(V): 3.3 ~ 4.4
供电电压（V）：3.3 ~ 4.4

Data Transfer数据传输
Sub-6G SA: 2.4Gbps(DL)/1Gbps(UL)
6GHz以下SA：下行2.4Gbps/上行1Gbps

Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL)
6GHz以下NSA：下行3.4Gbps/上行600Mbps

LTE: 1.6Gbps(DL)/200Mbps(UL)
LTE：下行1.6Gbps/上行200Mbps

HSPA+: 42Mbps (DL)/5.76Mbps(UL)
HSPA+：下行42Mbps/上行5.76Mbps
Software Features软件功能
Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
协议：TCP/IP/IPV4/IPV6/多PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0

TLS: ●
TLS：●

File System: ●
文件系统：●

FOTA: ●
FOTA：●

Android RIL: Android 6/7/8/9
Android RIL：Android 6/7/8/9

USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android
USB驱动：Microsoft Windows Win7/Win8/Win10/Linux/Android

MBIM: Win8/Win10
MBIM：Win8/Win10

NDIS: Linux/Win7/Win8/Win10
NDIS：Linux/Win7/Win8/Win10

Firmware Upgrade: USB 固件升级：USB

Interfaces接口
SIM Card: 1.8V/2.95V
SIM卡：1.8V/2.95V

USB: ●
USB：●

PCM: ●
PCM：●

I2C: ●
Diversity Receiver: ● 分集接收器: ●

Certifications认证
Regulatory: CE(RED)*/FCC*/RoHS*/REACH*
认证：CE(RED)*/FCC*/RoHS*/REACH*
