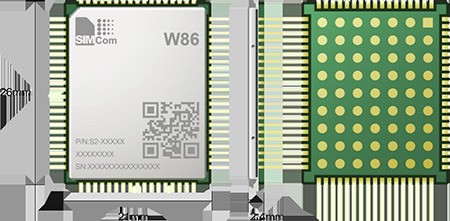

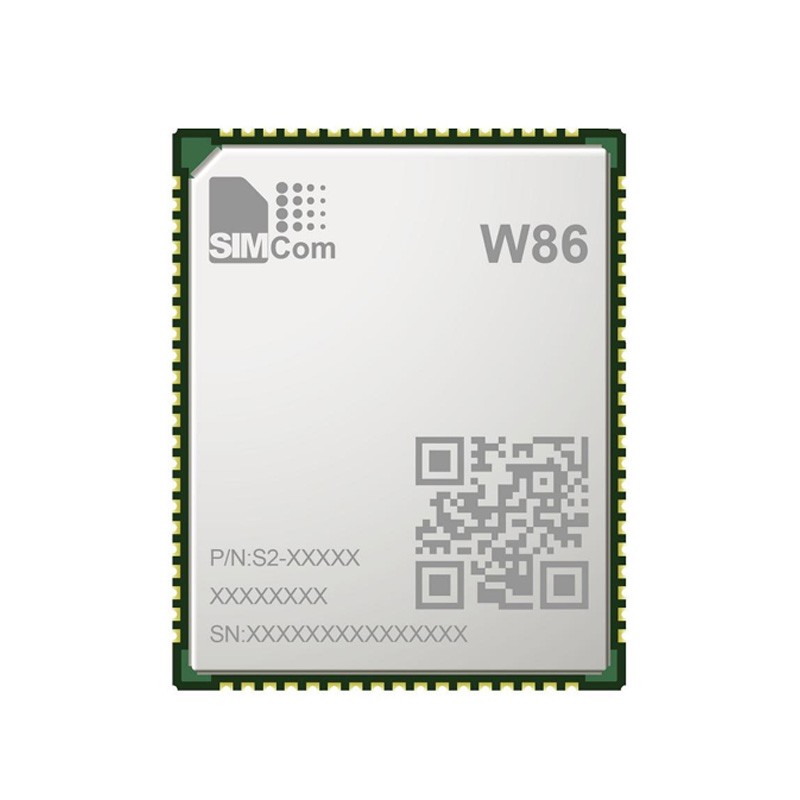

W86 is a small and highly integrated Wi-Fi module based on Qualcomm WCN-7851 chipset.
W86 是一款基于高通 WCN-7851 芯片组的微型、高度集成的 Wi-Fi 模块。
The module conforms to IEEE standard 802.11a/b/g/n/ac/ax/be.
该模块符合IEEE 802.11a/b/g/n/ac/ax/be标准。
The module is integrated with the WLAN processor, baseband and 2.4G/5G/6G RF transceivers. It support data communication between SIMCom 5G module SIM8X70X/SIM8X90X through PCIe interface.
该模块集成了WLAN处理器、基带以及2.4G/5G/6G射频收发器。它支持通过PCIe接口实现SIMCom 5G模块SIM8X70X/SIM8X90X之间的数据通信。
The module can be applied to 5G CPE, MiFi, car networking, router, and other wireless terminals.
该模块可用于5G CPE、MiFi、车联网、路由器及其他无线终端。
Product Advantages产品优势
• Support 2.4GHz, 5GHz and 6GHz
• 支持2.4GHz、5GHz和6GHz
• Support 2x2 MU-MIMO • 支持2x2 MU-MIMO
• Channel bandwidth up to 40 MHz at 2.4 GHz, up to 160 MHz at 5 GHz and up to 320 MHz at 6 GHz
• 2.4 GHz频段信道带宽最高可达40 MHz，5 GHz频段最高可达160 MHz，6 GHz频段最高可达320 MHz
• Dual Band Simultaneous up to 2.4 GHz 2x2 40 MHz + 5 GHz 2x2 160 MHz / 6 GHz 2x2 160 MHz
• 双频同时支持高达2.4 GHz 2x2 40 MHz + 5 GHz 2x2 160 MHz / 6 GHz 2x2 160 MHz
• High Band Simultaneous up to 5 GHz/6 GHz 2x2 160 MHz + 5 GHz/6 GHz 2x2 160 MHz
• 高频段同时支持高达5 GHz/6 GHz 2x2 160 MHz + 5 GHz/6 GHz 2x2 160 MHz
• Up to 5.8 Gbps data rate (2x2 5 GHz 160 MHz + 2x2 6 GHz 160 MHz with 4K QAM modulation)
• 最高5.8 Gbps数据速率（2x2 5 GHz 160 MHz + 2x2 6 GHz 160 MHz，采用4K QAM调制）
• Shared Bluetooth antenna with 2.4 GHz WLAN, and concurrent operation with 5 GHz/6 GHz WLAN
• 与2.4 GHz WLAN共用蓝牙天线，并可与5 GHz/6 GHz WLAN同时运行
